Not just a machine — a complete clear aligner production line built around your needs
01
Full-Stack Self-Developed Technology
Unlike competitors using generic industrial control systems, SC-002 features a proprietary control system with deep hardware-software integration — lower failure rates, easier debugging, faster maintenance response.
No dependency on third-party control platforms
Optimized specifically for aligner cutting scenarios
Seamless integration with SmartDesign software
02
20 Years of Clear Aligner Production Experience
We are not equipment traders — we come from actual production floors. This experience tells us exactly what clinics and labs really need.
Help new clients go from zero to production with fewer detours
Production flow design that fits real working conditions
Experience that cannot be replicated
03
Tailored Production Lines, Maximized Utilization
Spending hundreds of thousands on equipment — the biggest fear is idle capacity. We configure production lines precisely scaled to order volume, space, budget, and growth plans.
Large lines: scale-oriented, automated, capacity-first
Small lines: lean, low investment, fast ROI
Buy right, use fully, profit quickly
04
Full Process Coverage
From intraoral scan data import to finished aligner delivery — the complete chain under our control, no third-party software bridging required.
Scan data → Treatment planning → Cutting file → Post-processing, all in one
SC-002 + SmartDesign, seamlessly connected
CE marked — Directive 2006/42/EC and Directive 2014/30/EU; DoC issued by the manufacturer
Technical Specifications

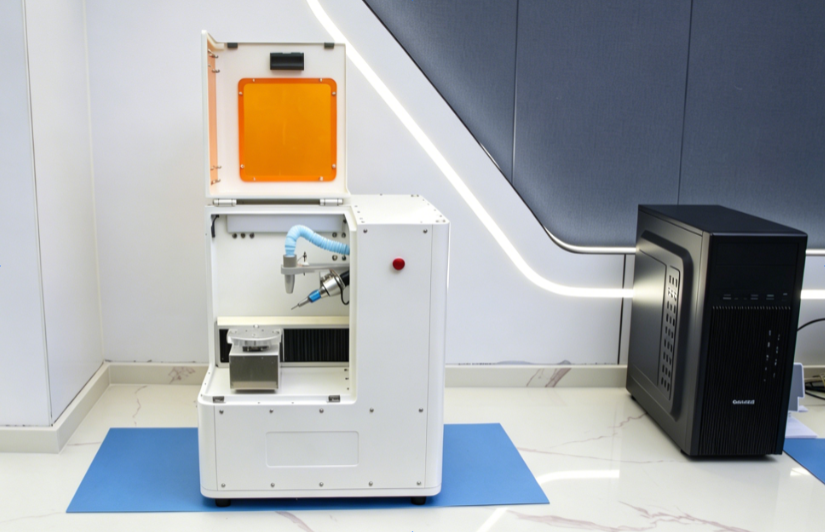

4-Axis CNC Precision Cutting System
Positioning Accuracy: ±0.05mm
Compatible Materials: 0.38–4.0mm Sheet Materials
PC Control Software (Chinese / English)
Noise: 78.2 dB(A) Full Load (EN ISO 11202)
Operating Voltage: DC24V
Equipment Weight: 42kg
CE Marked (Directive 2006/42/EC + 2014/30/EU)
Product Performance
Cutting Efficiency
30 seconds per unit (for complex aligners)
Continuous Operation
Supports multi-case 24-hour processing
Repeat Positioning Accuracy
±0.02mm
Software Compatibility
Direct integration with major orthodontic design software
Full Technical Specifications
General
Model
SC002
Dimensions (W×D×H)
410 × 400 × 460 mm
Net / gross weight
42 kg / 63 kg (packing 70 × 70 × 70 cm)
Frame structure
High-strength aluminum frame
Intended environment
Clinic / lab bench / small workshop
4-Axis Machining System
Axis configuration
X / Y / Z linear + A rotary axis (360°)
Travel X / Y / Z
100 / 80 / 50 mm
Positioning accuracy
±0.05 mm
Repeatability
±0.02 mm
Spindle speed
30,000 rpm
Feed rate
400 mm/min
Drive
Stepper motor + ball screw
Cutting time per aligner
About 30 s
Power & Environment
AC input
100–240 V, 50/60 Hz (wide voltage)
Operating voltage
DC 24 V
Power consumption
≈150 W typical / 240 W max
Noise level
78.2 dB(A) full load · 69.1 dB(A) standby (EN ISO 11202)
Safety features
Door switch · E-stop · limit switches
Cutting Capability & Materials
Sheet thickness range
0.38 – 4.0 mm
Compatible materials
All organic dental sheets (clear / blue, etc.)
Applicable products
Clear aligners · retainers
Cutting quality
Smooth, burr-free edges; precise gingival margin line; upper & lower arches in one pass
Noise values are third-party measured results, sourced from CE technical file MD-TCF-260824-93741, “3.2 Airborne noise Report”.
Two Cutting Workflows
With or without a treatment-design file — SC-002 covers both
Mode 1 · From design software
Direct Cutting of Designed Cases
Complete the case in your orthodontic design software (e.g. eset) and export the file with cutting toolpaths.
Import into SmartCutter — the model and cutting lines are recognized automatically.
Verify the parameters and start cutting — no pre-processing required.
Best for: batch production of treatment-plan cases — cutting lines generated by the design software, no manual drawing, no human error.
Mode 2 · Without a design file
SmartDesign Pre-Processing Route
Export a closed-shell base STL from your intraoral-scan or 3D design software.
In SmartDesign (free), the positioning fixture auto-aligns; draw the gingival margin line — about 2–3 minutes.
SmartCutter auto-generates the cutting path and cuts.
Best for: standard retainers and simple aligners without personalized design — small-batch, quick turnaround.
See It Cut
Real cutting footage — no rendering
Fast Aligner Cutting
A complete cutting cycle in under a minute — load, cut, unload.
Top-View Cutting
Watch the 4-axis spindle follow the gingival margin line from above.

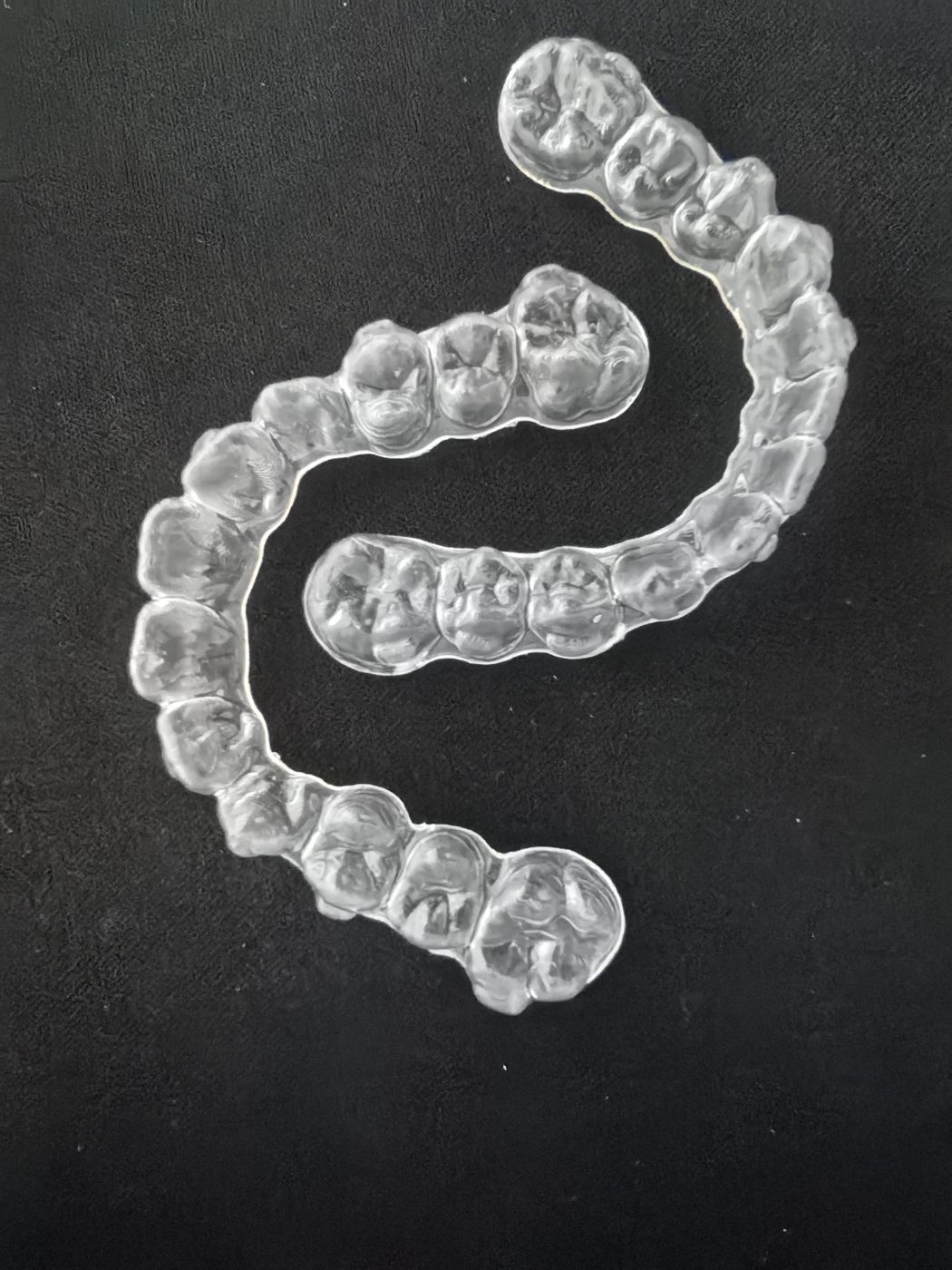

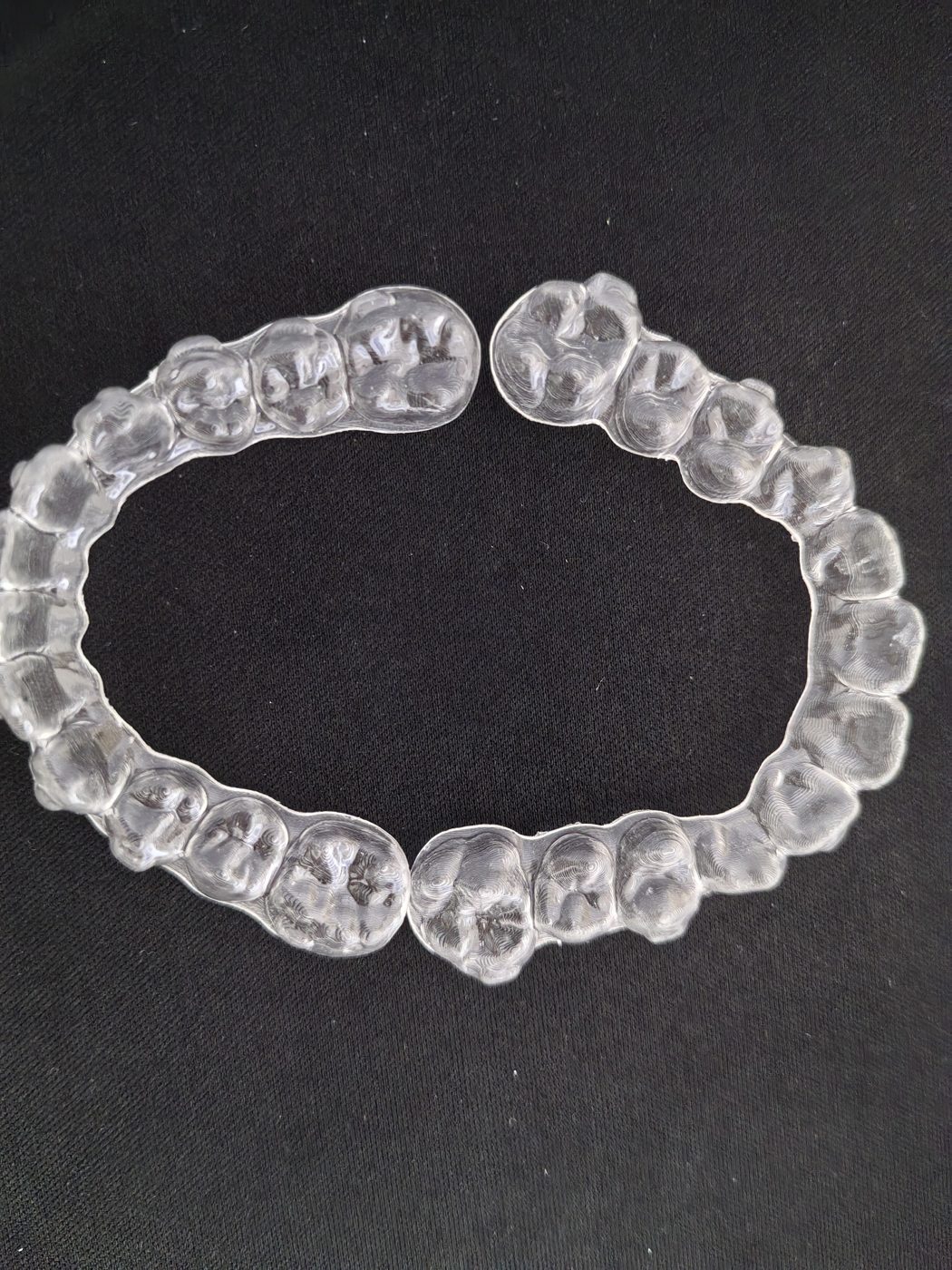

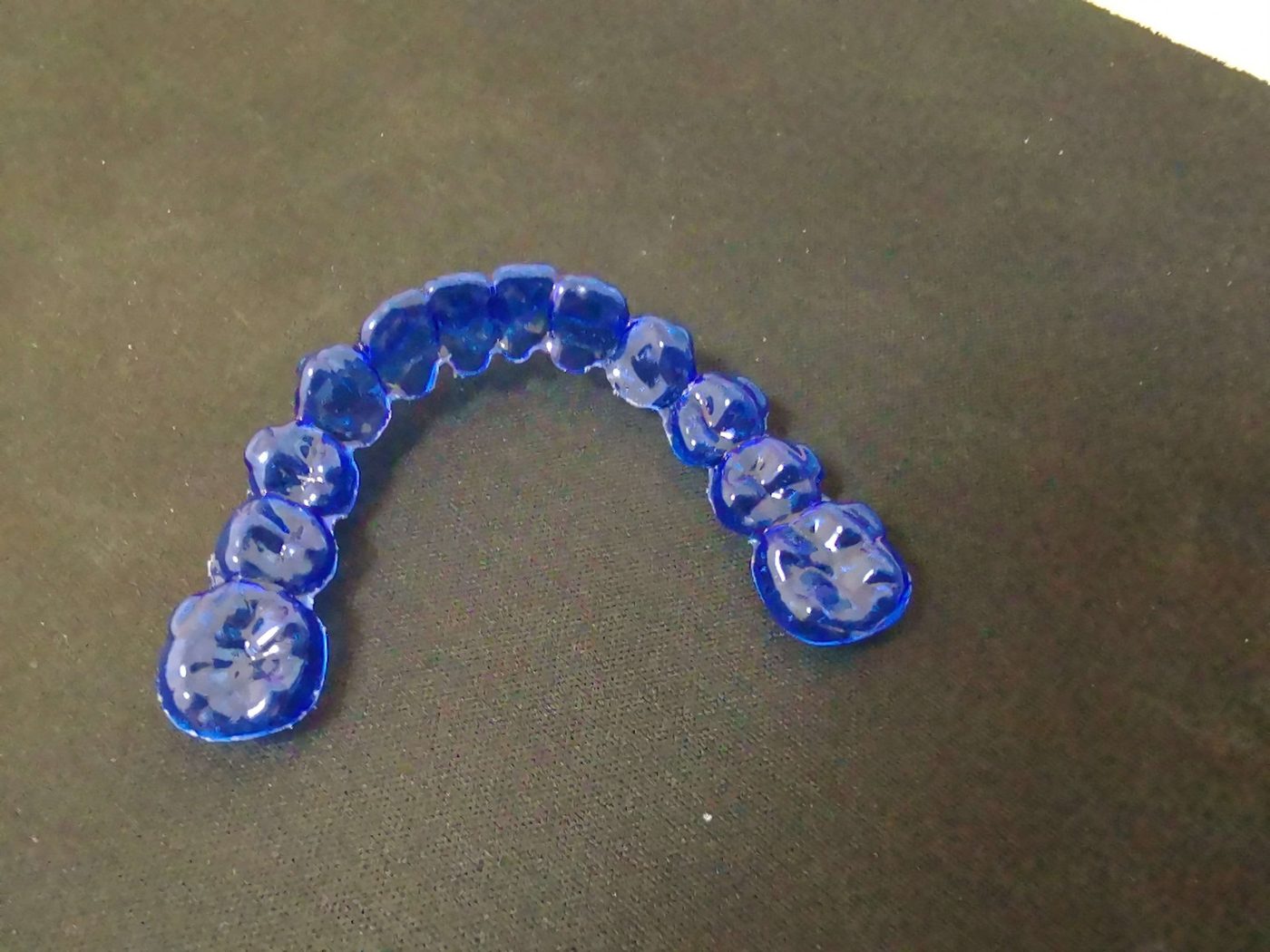

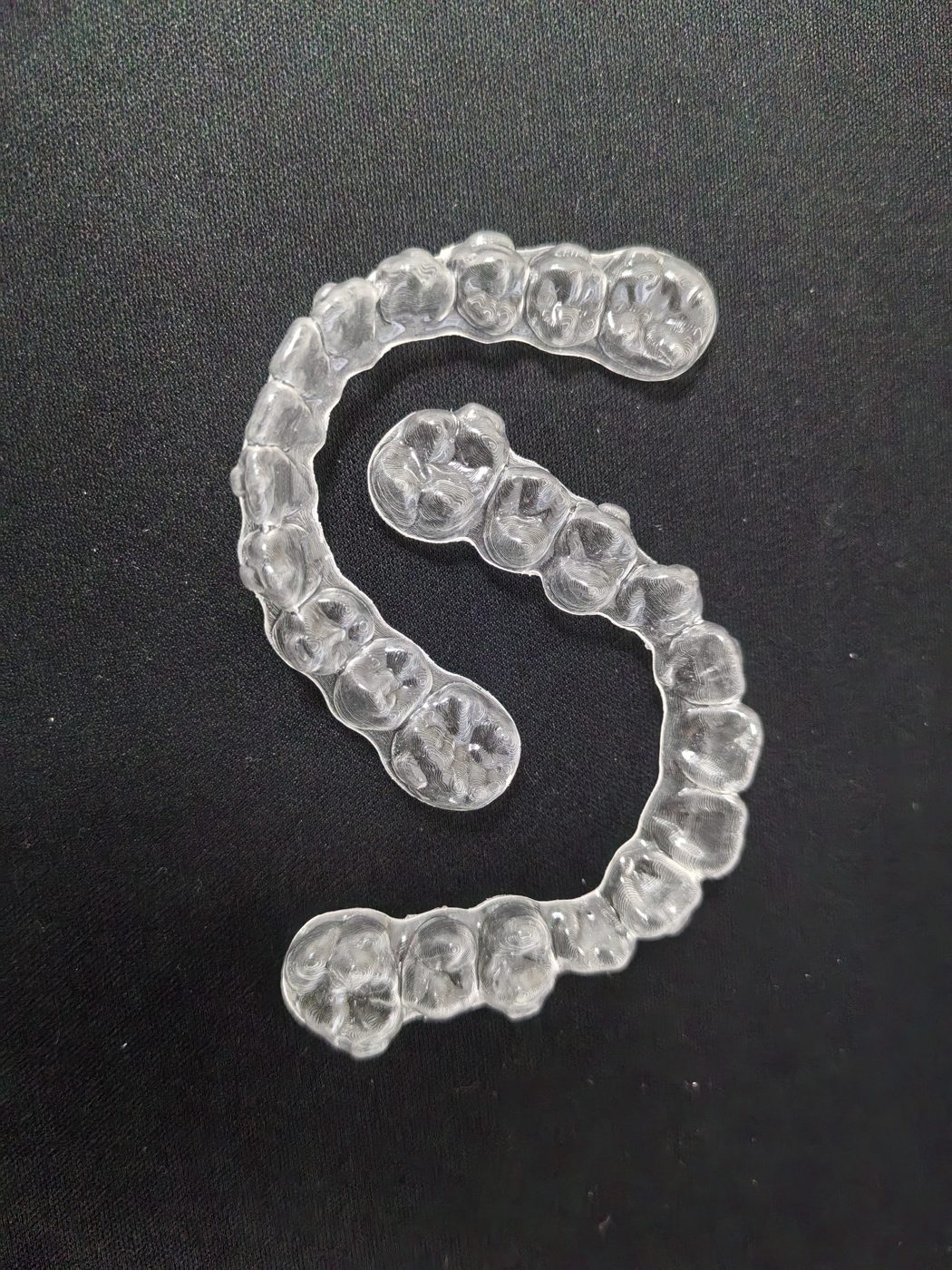

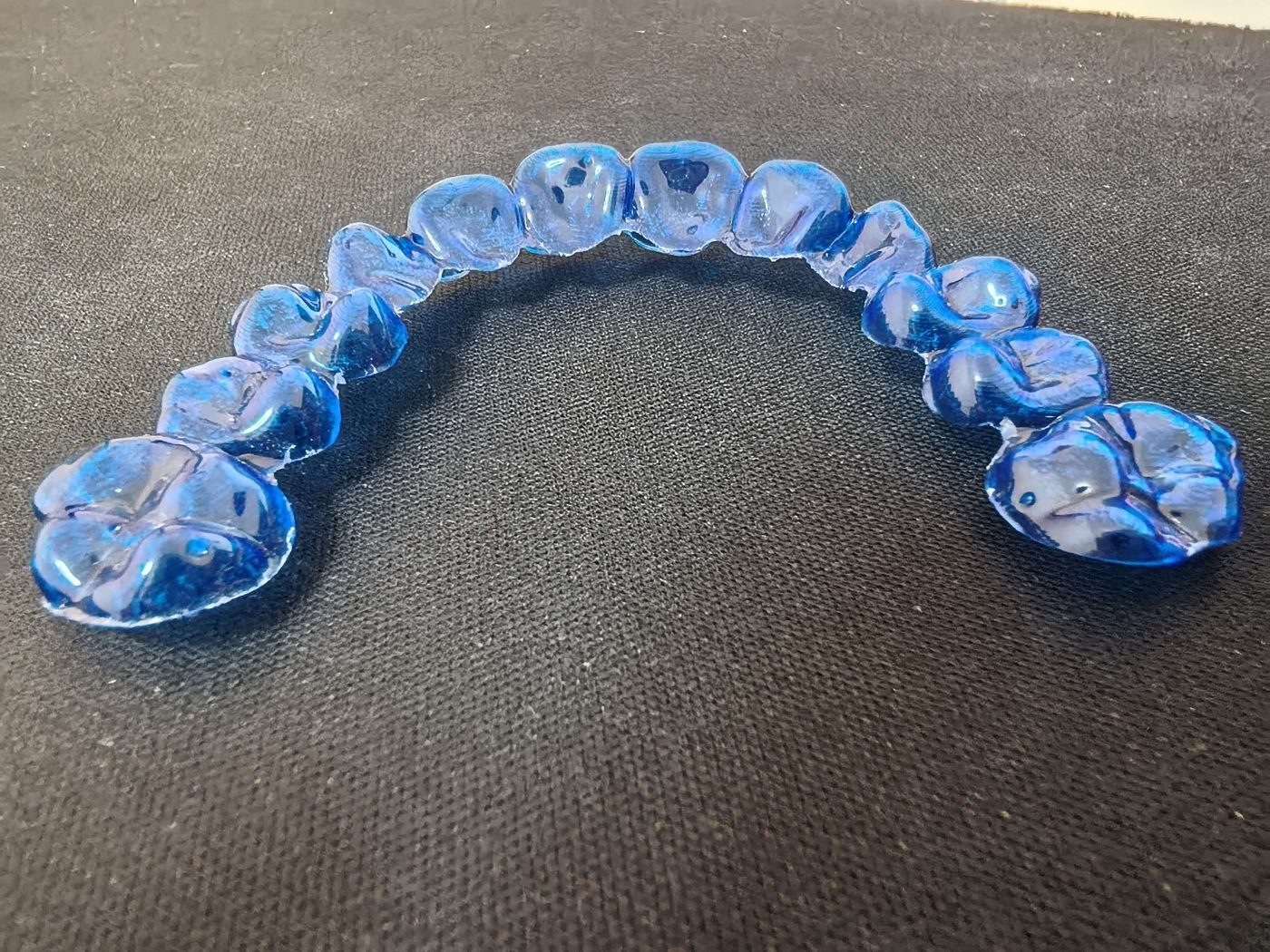

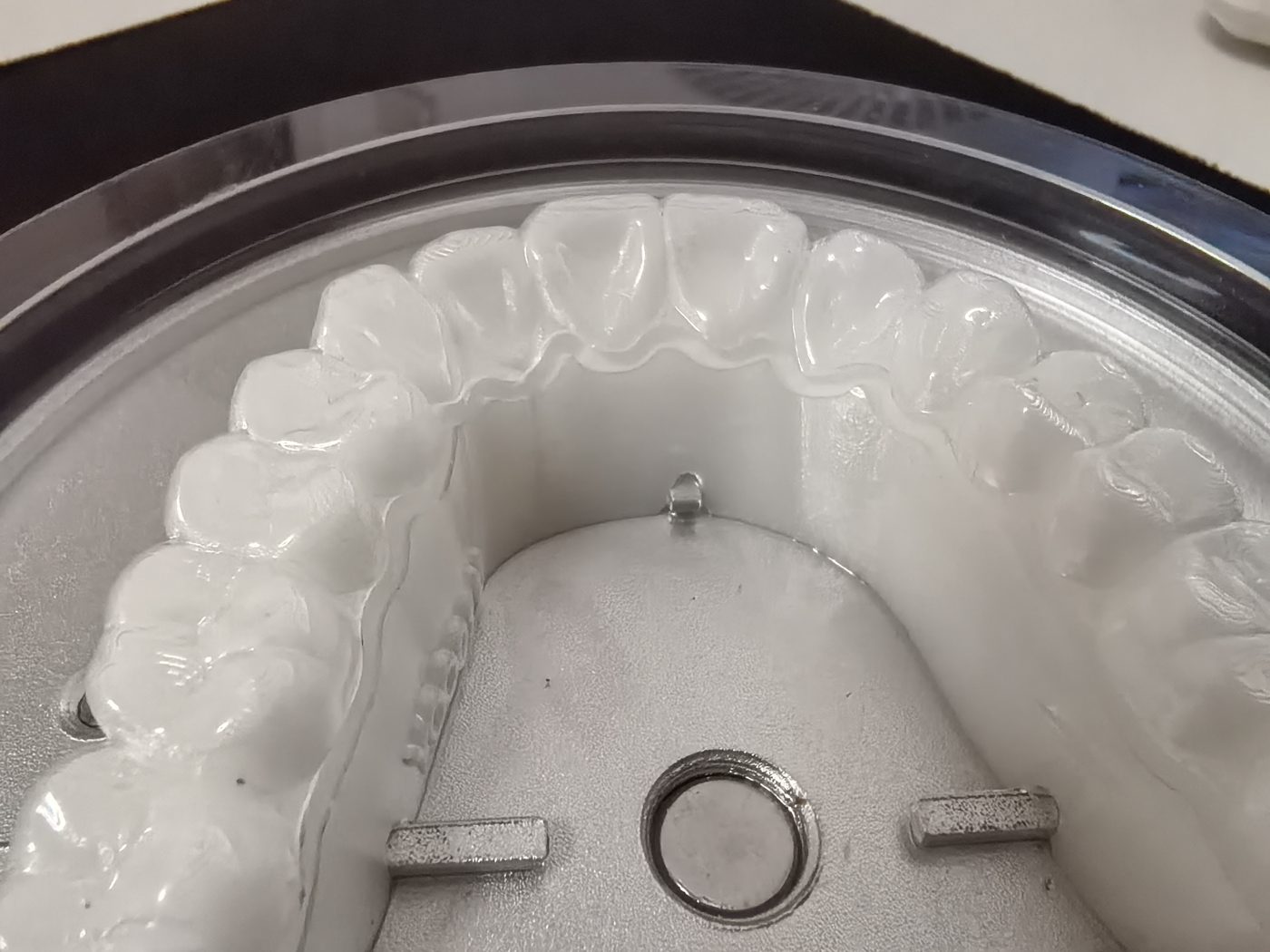

Cutting Results
Actual output — smooth edges, precise gingival margin, upper & lower in one pass
The SC-002 is a non-medical electrical machine for dental laboratory and clinical use. The attestation above covers machinery safety and electromagnetic compatibility; it is not a medical-device certification under EU MDR 2017/745. Certificate verification: www.conasce.com
Machine control software: SmartCutter (included with the SC-002)
Pre-processing software: SmartDesign — free to install and use, no machine required
Interface languages: Chinese / English
Connection: USB data cable between machine and PC
Input format: standard STL — no proprietary format conversion required
Licence: no recurring fee, no per-part charge
Detailed operating-system and hardware requirements are supplied with the machine documentation. Please contact us if you need them before purchase.
This device is equipped with two professional orthodontic software systems independently developed by our team: SmartCutter and Smart Design. The software is operationally stable and fully tailored to the needs of clear aligner manufacturing. The equipment supports one-click cutting functionality with a simplified workflow, while also boasting broad compatibility with most mainstream orthodontic software on the market. All design files can be directly imported without additional format conversion, creating a seamless workflow from design to manufacturing and significantly improving overall operational efficiency.
⚙️
Same-day In-Clinic Production, No External Outsourcing
Produce aligners in-house, reduce turnaround time, eliminate outsourcing costs.
🔄
New Users Up and Running in 5 Minutes
Intuitive software interface with minimal training required.
👏
Maintenance-Free Design, Worry-Free Operation
Robust construction designed for daily lab use with minimal upkeep.
♾
Low Rework Rate, Reduced Material Waste
High precision cutting minimizes errors and material loss.
Standard Cutting Mode
Dedicated program for routine aligners — balanced efficiency and precision.
Retainer Cutting Mode
Independent retainer process program for edge drop, chamfer and fine margin lines.
Multi-Loop Progressive Cutting
Single / double / multi-loop layered depth for thick sheets — no cracking or tearing.
Packing List
SC-002 Intelligent Aligner Cutter ×1
Calibration/Standard Features ×4
Power Adapter ×1
Thermolaminating Machine Adapter Ring ×1
Specialized Cutting Tools ×10
User Manual & Warranty Card ×1
Request a Quote
Contact us for pricing, distributor opportunities, and technical documentation.
